Choosing a high-frequency grinder starts with matching the tool to its power supply. 250Hz is the traditional Japanese high-frequency power standard, while 300Hz is the traditional European standard. Neither is a new universal standard replacing the other.
For foundries and shipyards, the right choice depends on existing power infrastructure, wheel size, grinding workload, and operator comfort. The FUJI 250/240Hz Grinder and Converter System is an option for first-time installations.

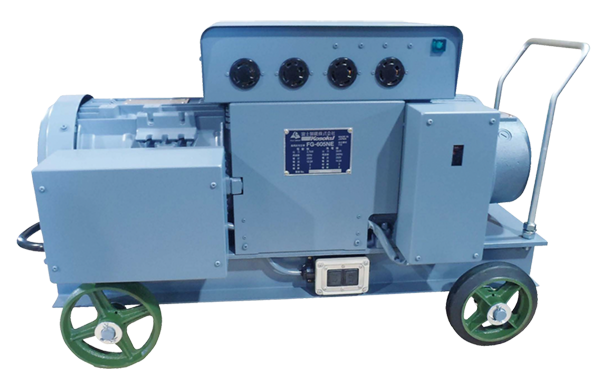

For facilities or markets that have not previously used high-frequency grinders, a complete 250/240Hz system is a practical option. A rotary frequency converter, also known as a motor-generator set, uses the local 50Hz or 60Hz mains supply to provide 250Hz or 240Hz high-frequency power for matching angle grinders.
250/240Hz describes the available configurations; it does not mean every tool automatically accepts both frequencies. Transformer requirements depend on converter input ratings and the site's supply.
If your facility already operates a 300Hz high-frequency supply, choose compatible 300Hz high-frequency angle grinders or straight grinders. These tools can connect directly when voltage, connectors, and supply capacity match the selected model's requirements.
There is no need to change a suitable 300Hz installation simply to purchase replacement tools. If the existing power source needs replacement, assess the complete supply and tool requirements before selecting a new system.
A 250Hz angle grinder cannot be connected directly to a 300Hz power supply. Select compatible 300Hz tools for an existing 300Hz system. High-frequency grinders must not be connected directly to ordinary 50/60Hz mains outlets.
In the FUJI range discussed here, 250Hz angle grinders support wheels up to 180mm (7 inches). They are relatively lightweight and easier to handle, making them a practical choice for many Asian operators who prefer a lighter tool. Assess individual comfort from tool weight, grip, working position, and task duration.
The 300Hz range includes 230mm (9-inch) high-frequency angle grinders with greater power for demanding material removal. These larger models suit tasks requiring larger wheels and more powerful grinding.
These differences concern the available models. Frequency alone does not determine power, weight, durability, or grinding efficiency. Compare individual model specifications.
| Selection Factor | 250/240Hz System | 300Hz System |
|---|---|---|
| Traditional standard | Japanese 250Hz standard; 240Hz configurations available | European 300Hz standard |
| Power supply | Matched converter and grinders for a first-time installation, or compatible existing supply | Compatible existing 300Hz supply or matched new installation |
| Angle grinder wheel size | Up to 180mm (7 inches) in the range discussed here | Includes 230mm (9-inch) models |
| Handling and workload | Relatively lighter handling | Larger, higher-powered models for demanding work |
| Tool selection | Angle grinders rated for actual 250Hz or 240Hz output | Compatible 300Hz angle grinders or straight grinders |
Match tool size and power to the workload, and choose abrasive wheels with the correct dimensions and speed rating for the grinder and material.
Is 250Hz replacing 300Hz as a new global standard?No. 250Hz is the traditional Japanese high-frequency power standard, while 300Hz is the traditional European standard. Choose according to your infrastructure and application.
What should first-time high-frequency grinder users choose?Consider a complete 250/240Hz converter and angle grinder system. Specify your local 50/60Hz mains frequency, voltage, and phase configuration so matching equipment can be selected.
Can a 250Hz grinder use our existing 300Hz supply?No. Select compatible 300Hz angle grinders or straight grinders for the existing 300Hz supply.
Which range offers a 9-inch angle grinder?The 300Hz range includes 230mm (9-inch) models with greater power. The 250Hz range discussed here supports wheels up to 180mm (7 inches) and offers relatively lighter handling.
Can high-frequency grinders connect directly to 50/60Hz mains?No. They require a high-frequency source matching the tool's rated frequency and voltage.
Tell FUJI your mains specifications, existing high-frequency supply ratings, required wheel size, and grinding application. Our technical team can help select compatible grinders and a matching converter where needed.
